EX120-5 9150036 9153392 Motor Excavator Final Drive Hitachi Travel
Description of Excavator Final Drive
The final drive is a component of an excavator's power transmission system and is loed between in the rear of the machine's undercarriage opposite of the blade. A final drive's main function is to reduce the speed of the propeller shaft by decreasing RPMs and increasing the torque.
The differences between travel motors and final drive motors come down to their functions. While the two are related, it’s certainly important to know what sets them apart when getting new parts. When referring to a final drive motor, this typically means the hydraulic motor and the planetary gear hub, while a travel motor signifies only a hydraulic motor.
Specfiion of Excavator Final Drive
| Model: EX120-5 | egory: Excavator Final Drive |
| Brand: TGFQ | Place of Origin: China |
| Motor:HMGF68EA | Payment Term: L/C, T/T, D/P, D/A |
| Part Number: 9150036 9153392 | Means of Transport: By Sea, By Air or By Express |
| Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping. |
Feature of Excavator Final Drive
1. High strength
2. Corrosion resistance
3. Suitable for operation in various environments
About Us
Guangzhou Tiangong Machinery Equipment Co., Ltd. specializes in excavator final drive and parts.TGFQ was established in 2000. For year's expansion and development, TGFQ has become one of the leading in China.TGFQ is manufacturing and trading company, which can provide high quality and competitive price for you.Our products sell well all over the world.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
EX120-5 Excavator Final Drive Picture

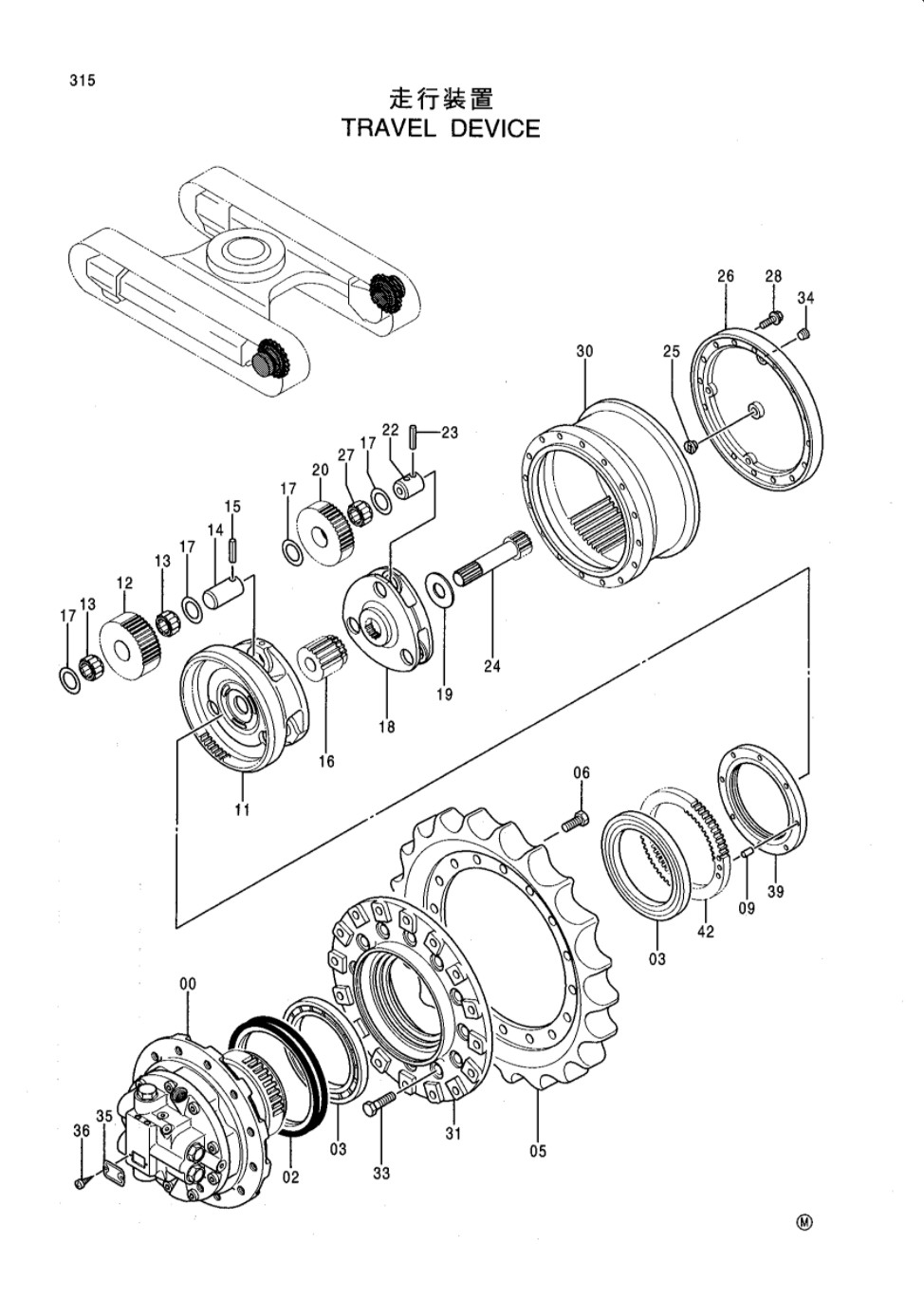

Drawing:
| Pos. | Part No | Qty | Parts Name | Comments |
| | 9150030 | [2] | TRAVEL DEVICE ASS'Y | I 9156719 (for assembly of machine) |
| | -9156719 | [2] | TRAVEL DEVICE ASS'Y | (for transportation) |
| 0 | 9150036 | [1] | MOTOR;OIL | I 9153392 (for assembly of machine) |
| 0 | -9153392 | [1] | MOTOR;OIL | (for transportation) |
| 2 | 4110369 | [1] | SEAL;GROUP | |
| 3 | 4321887 | [2] | BRG.;ROL. | |
| 5 | 1010325 | [1] | SPROCKET | |
| 6 | J931640 | [16] | BOLT | |
| 9 | 4148012 | [1] | PIN;KNOCK | |
| 11 | 1014516 | [1] | CARRIER | |
| 12 | 3049926 | [3] | GEAR;PLANETARY | Y 3082618 |
| 12 | 3082618 | [3] | GEAR;PLANETARY | |
| 13 | 4354289 | [6] | BRG.;NEEDLE | |
| 14 | 4245966 | [3] | PIN | |
| 15 | 4144020 | [3] | PIN;SPRING | |
| 16 | 3072878 | [1] | GEAR;SUN | |
| 17 | 4192982 | [12] | PLATE;THRUST | |
| 18 | 2028797 | [1] | CARRIER | |
| 19 | 4252721 | [1] | SPACER | |
| 20 | 3049925 | [3] | GEAR;PLANETARY | Y 3081793 |
| 20 | 3081793 | [3] | GEAR;PLANETARY | |
| 22 | 4178203 | [3] | PIN | |
| 23 | 4192020 | [3] | PIN;SPRING | |
| 24 | 2028798 | [1] | SHAFT;PROP. | |
| 25 | 4258916 | [1] | PIN;STOPPER | |
| 26 | 2028800 | [1] | COVER | |
| 27 | 4354278 | [3] | BRG.;NEEDLE | |
| 28 | J011230 | [12] | BOLT;SEMS | |
| 30 | 1016124 | [1] | GEAR;RING | |
| 31 | 1016125 | [1] | DRUM | |
| 33 | J931660 | [16] | BOLT | |
| 34 | 4245797 | [3] | PLUG | |
| 35 | 3053559 | [1] | NAME-PLATE | |
| 36 | M492564 | [2] | SCREW;DRIVE | |
| 39 | 3057124 | [1] | NUT | |
| 42 | 3059034 | [1] | HUB | |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.
FAQ
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry
