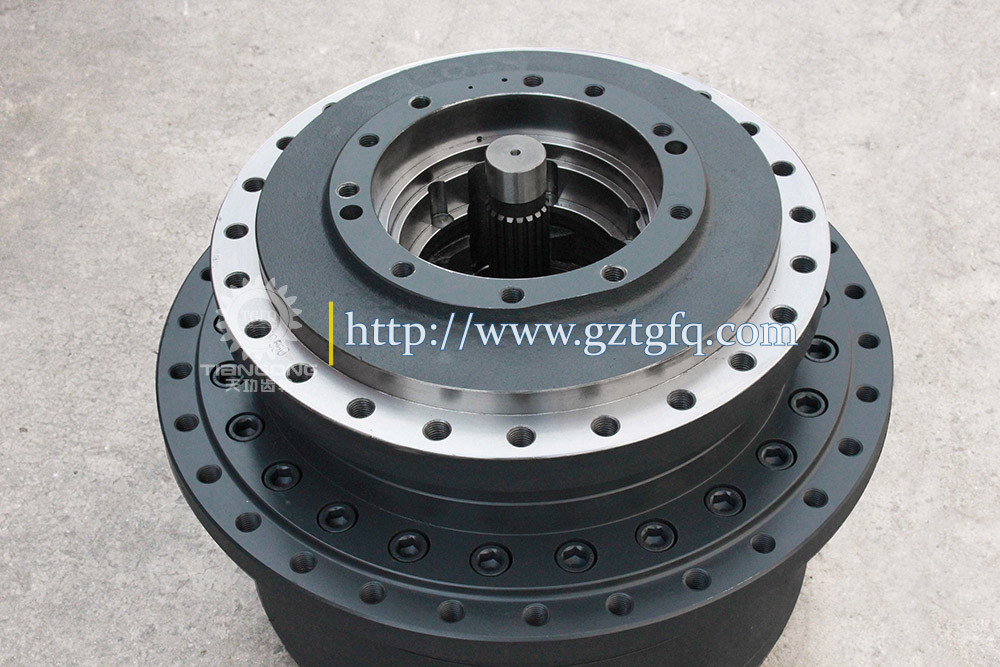

R485VS/R480LC-9S/R520LC-9S 39QB-40100 Hyundai HCE TRAVEL MOTOR ASSY Excavator Travel Device Assy
| |
| Model: PC210-10MO | egory: Excavator Final Drive |
| Brand: TGFQ | Type: MAG170VP-3800G-10 |
| Part Number: 708-8F-31320 L/708-8F-31570 R | Inventory: In stock |
| Color: Red | Holes: 18/20 Holes cover 20holes |
| Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping. |
R485VS/R480LC-9S/R520LC-9S 39QB-40100 Hyundai HCE TRAVEL MOTOR ASSY
Excavator Travel Device Assy
| | 39QB-42100 | [1] | TRAVEL REDUCTION GEAR |
| 1 | 39QB-42110 | [1] | GEAR-RING |
| 2 | 39QB-42120 | [2] | BEARING-BALL |
| 3 | 39Q8-42130 | [2] | SEAL ASSY-FLOATING |
| 4 | 39QB-42130 | [1] | NUT-RING |
| 5 | 39QB-42140 | [1] | PLATE-LOCK |
| 6 | S017-120206 | [4] | BOLT-HEX |
| 7 | S482-130020 | [1] | PIN-PARALLEL |
| 8 | 39QB-42150 | [1] | HOUSING |
| 9 | S109-120356 | [16] | BOLT-SOCKET |
| 10 | 39QA-42360 | [1] | COUPLING |
| K11. | 39QB-42170 | [1] | CARRIER |
| K12. | 39QB-42180 | [4] | GEAR-PLANATARY |
| K13. | 39Q8-42210 | [4] | BEARING-NEEDLE |
| K14. | 39QB-42190 | [8] | WASHER-THRUST |
| K15. | 39QB-42200 | [4] | PIN-CARRIER |
| K16. | S472-910404 | [4] | PIN-SPRING |
| K17. | 39Q8-42240 | [4] | PIN-SOLID |
| 18 | 39QB-42210 | [1] | GEAR-SUN |
| K19. | 39QB-42230 | [1] | CARRIER NO.1 |
| K20. | 39QB-42240 | [3] | GEAR-PLANETARY NO.1 |
| K21. | 39QB-42250 | [3] | BEARING-NEEDLE |
| K22. | 39Q8-12230 | [6] | WASHER-THRUST |
| K23. | 39QB-42260 | [3] | PIN-CARRIER |
| K24. | S472-600504 | [3] | PIN-SPRING |
| 25 | 39QB-42270 | [1] | GEAR-SUN NO.1 |
| K26. | 39Q8-42330 | [1] | PLATE-THRUST |
| 27 | 39Q6-42320 | [1] | PLATE-THRUST |
| 28 | 39QB-42281 | [1] | COVER |
| 29 | 39QB-42290 | [1] | SEAL-COVER |
| 30 | S109-100256 | [16] | BOLT-SOCKET |
| 31 | S109-201206 | [25] | BOLT-SOCKET |
| 32 | P220-110205 | [3] | PLUG-HEX |
| 33 | S602-045001 | [1] | RING-RETAINING,C TYPE |
| N34. | 39QB-42350 | [1] | NAME PLATE |
| 35 | 39Q6-41800 | [2] | RIVET |
| 36 | S631-024001 | [3] | O-RING |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
